DIY: Official 5th Gen Timing Belt Job Procedure! (by JLUDE 03/11/08)

246344 Views 180 Replies 81 Participants Last post by  Ombox76
25
First things first: This writeup is intended solely as guidance for those skilled enough to attempt a job of this level themselves. Just because I did it does not mean you can! I'm an engineer and have a lot of experience working on cars otherwise I would never attempt this job myself. That said it is still a medium level job as far as tools required and degree of difficulty. It is a very time consuming job and some parts can be very tedious and having small hands is almost required for certain things!
I don't mean to scare you guys away but just so you are aware...there is a reason that shops charge $350 - $800 just for the labor on this job!

TIPS:
- Have a shop break your crank pulley bolt loose first! Without EagleEyez's shop I would have been in some trouble!
- You'll need at least a full weekend dedicated to this job if you've never done something like this before.
- Make sure you take your time. This is a pretty critical job that if messed up...could spell disaster for your motor!
- Label all parts removed, especially bolts and nuts as to where they go! I use ziplock bags stored in a 5 gallon bucket to keep anything from happening to them! That can be one of the most frustrating things...to loose a 10 cent bolt that prevents you from finishing the job!
- All the info for parts, Helms Manual, Manual tensioner writeup is in this thread:
http://www.preludepower.com/forums/showthread.php?t=279992

1. I removed the bumper cover and headlight to make it easier to work.

- Drain the motor oil into a clean container and save for later reuse.

- Drain the coolant into a clean container and save for later reuse.

- Disconnect the battery negative (-) black terminal.

I also covered the fender with a terry towel to protect it. Then raise the front of the vehicle on jack stands and remove the driver side wheel:




2. You can start by disconnecting the alternator wires and swinging them out of the way:

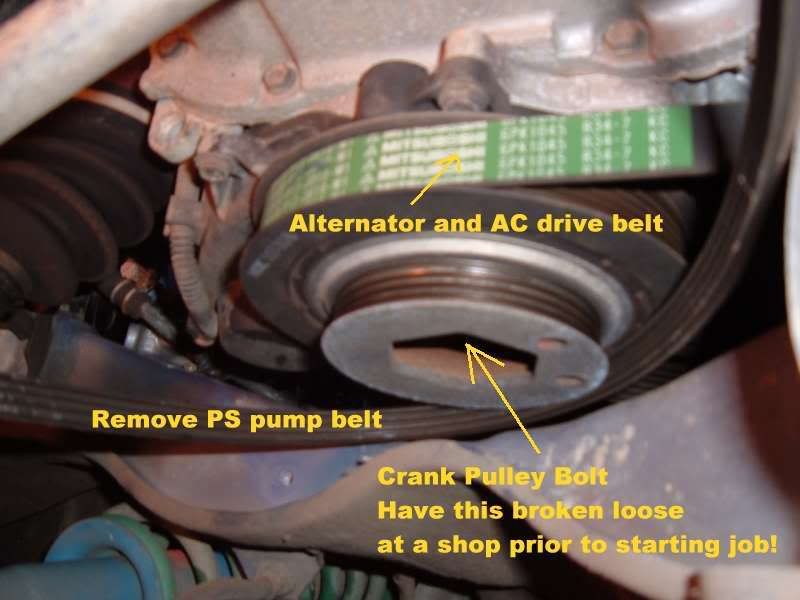

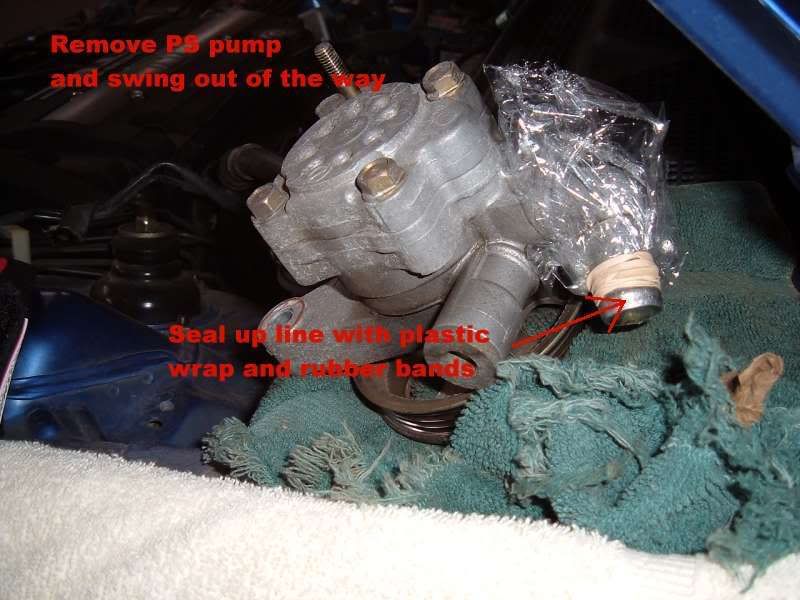

3. Next we will remove the power steering pump:
*Note: Do NOT remove the metal line that goes into the top of the PS pump! Just leave it attached and the pump will swing out of the way just fine.













4. Next remove the splash shield from the crank pulley end



5. Remove the spark plug wires and valve cover:







6. Remove alternator:



7. Remove Alternator and PS pump brackets:





8. Remove upper timing cover:







9. Loosen the Cam Gears if you plan to replace the cam seals:

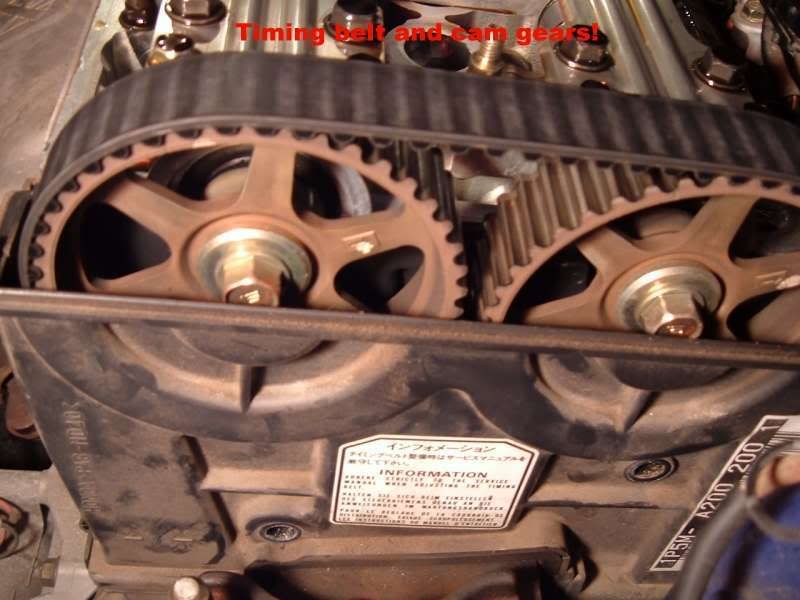

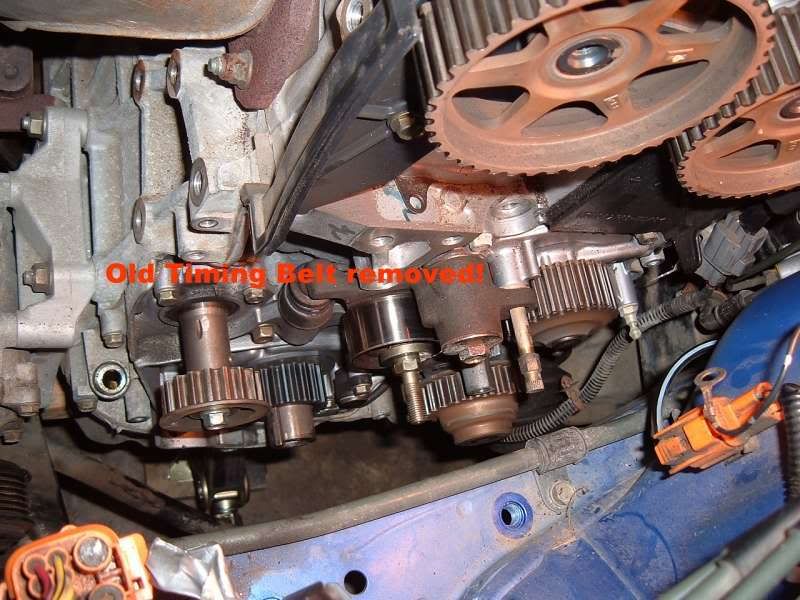

10. Remove timing belt from the cam gears:







11. Remove under cam plastic plate and remove old cam seals:



See less See more
  • Like
Reactions: 5
1 - 20 of 181 Posts
34

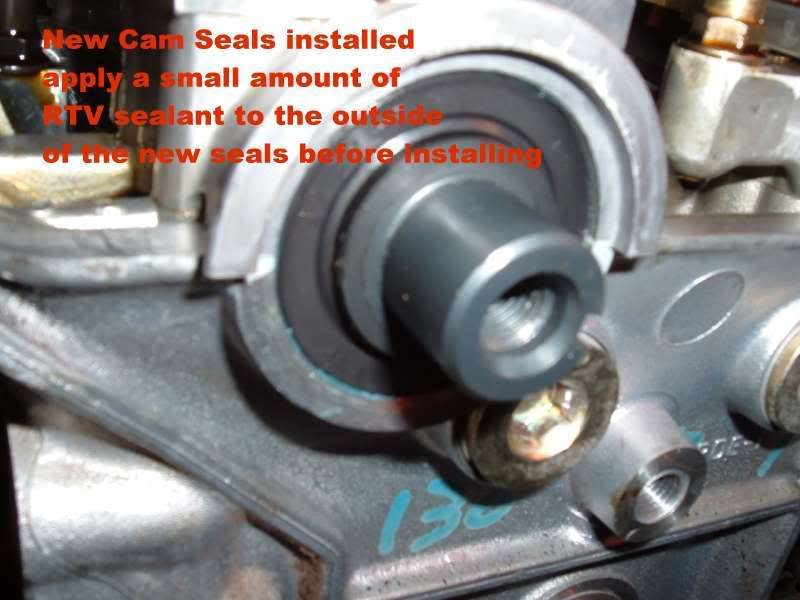

12. Install new cam seals:

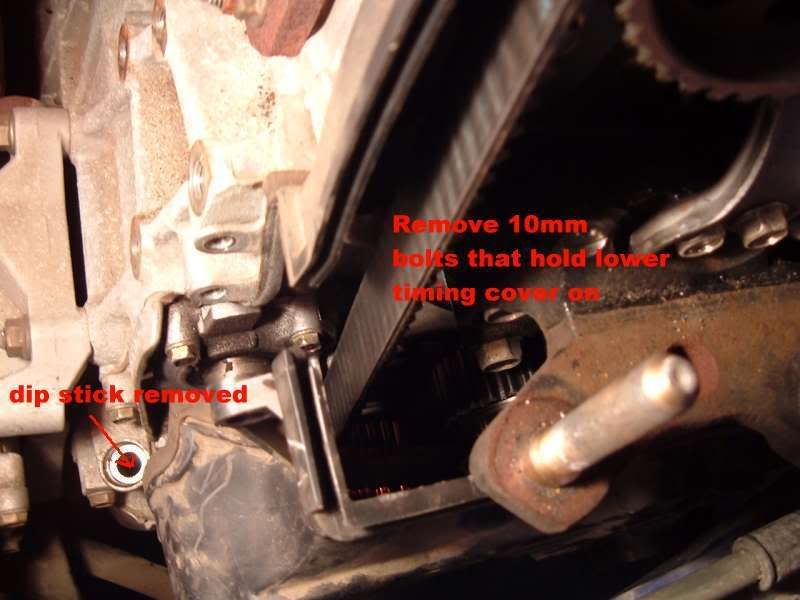

13. Remove the lower timing cover. Keep in mind that there is a wire loom on the back side of it that connects to the crank sensors...you must disconnect this wire from the cover first...take your time.

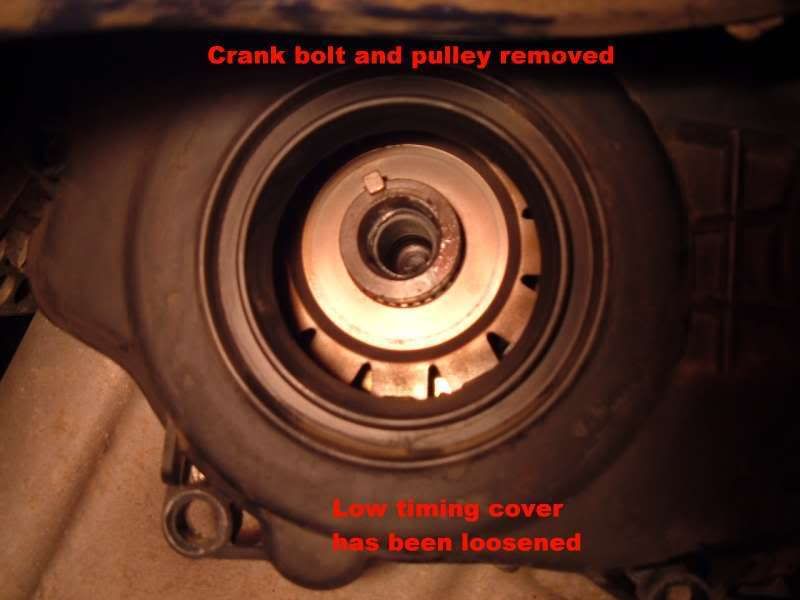

The crank pulley must be removed to free lower cover:



14. Lower cover out of the way:

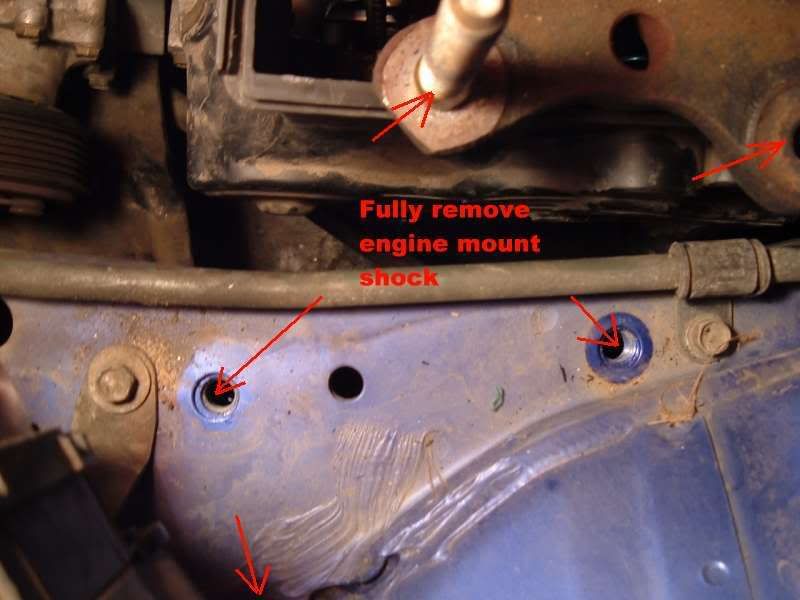

15. Remove the side engine mount:

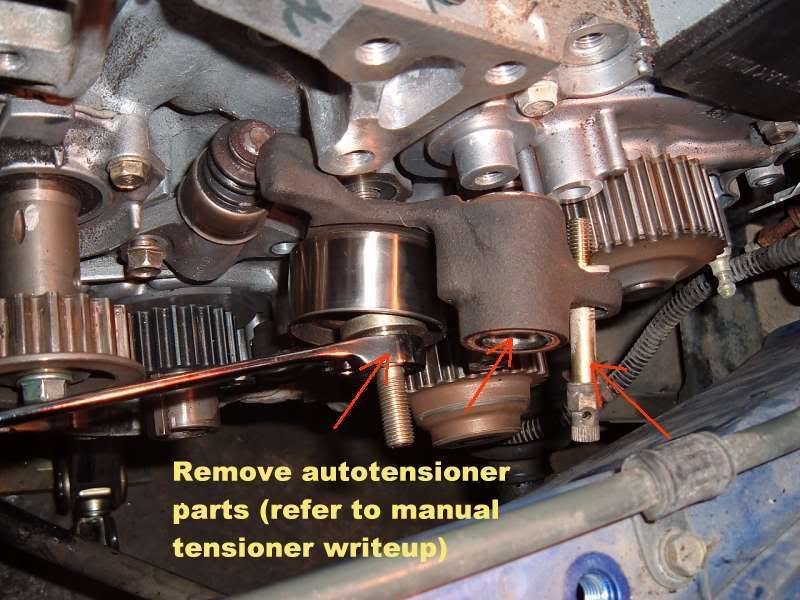

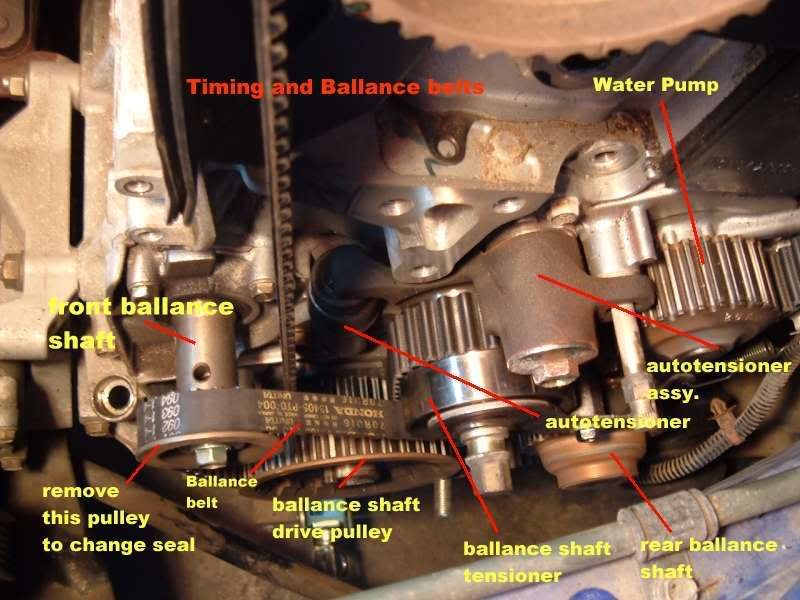

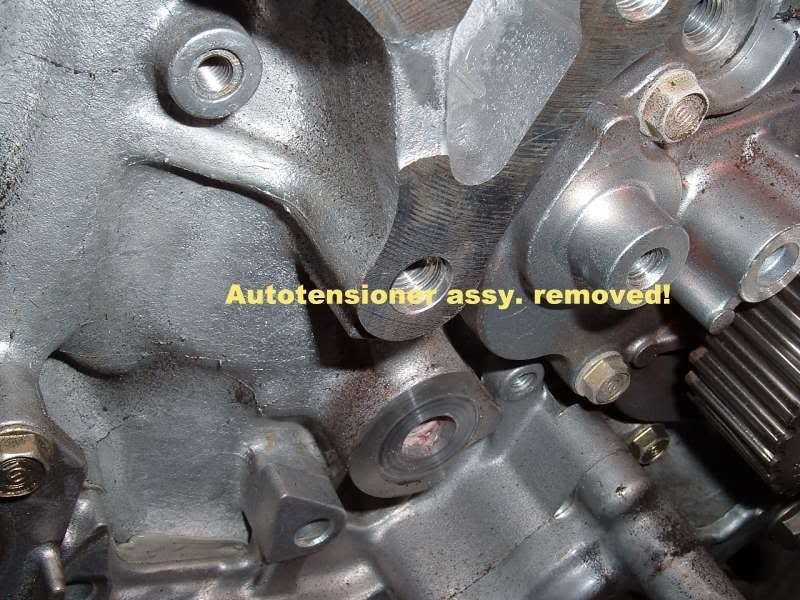

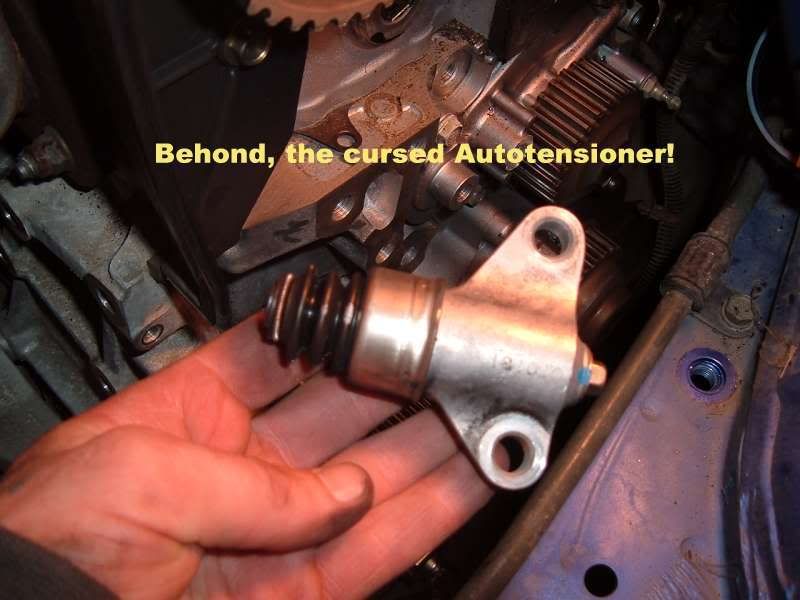

16. Remove the autotensioner assy. (refer to the auto to manual tensioner swap writeups)

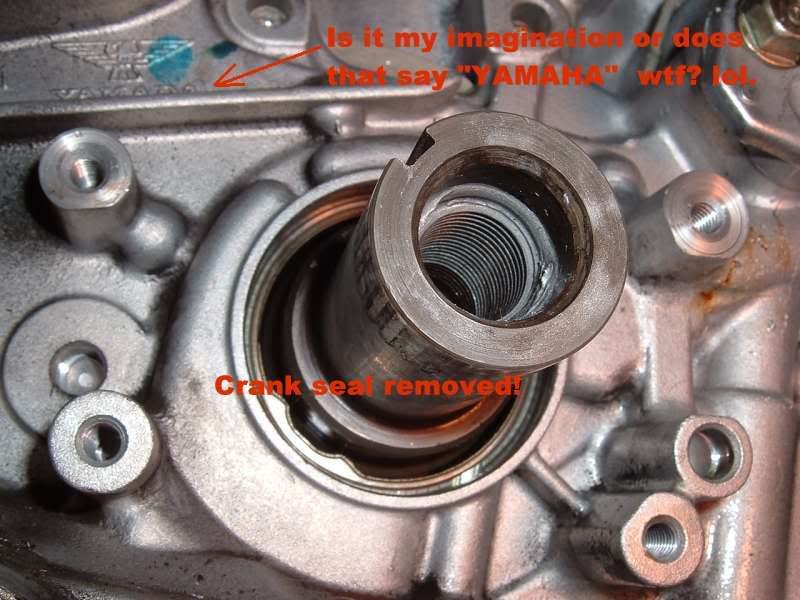

17. If replacing the crank shaft oil seal, remove the crank angle sensor assy. (4, 10mm bolts) and carefully remove the timing belt drive gear from the crankshaft. Remove the old crank shaft oil seal:





Replace with new crank shaft oil seal! Make sure it seats uniform...I used a small hammer and blunt tipped tapper

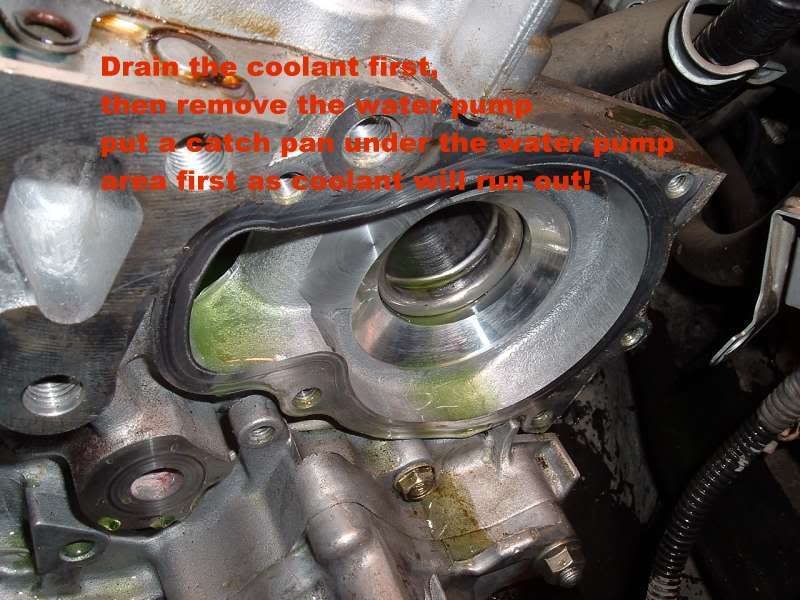

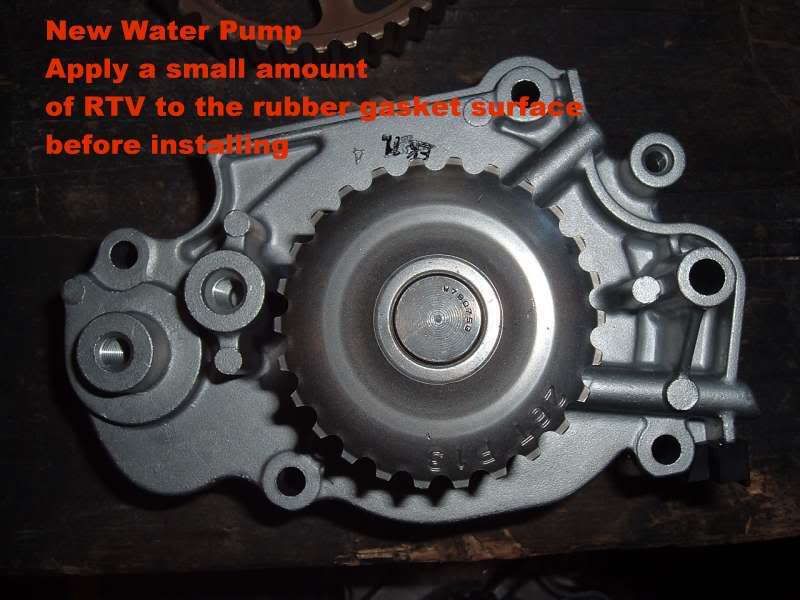

18. Remove old water pump and install new:

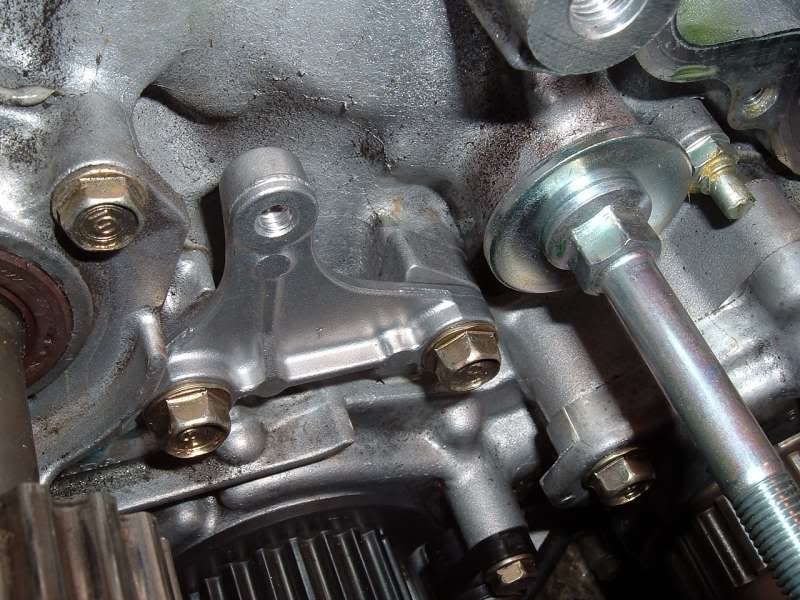

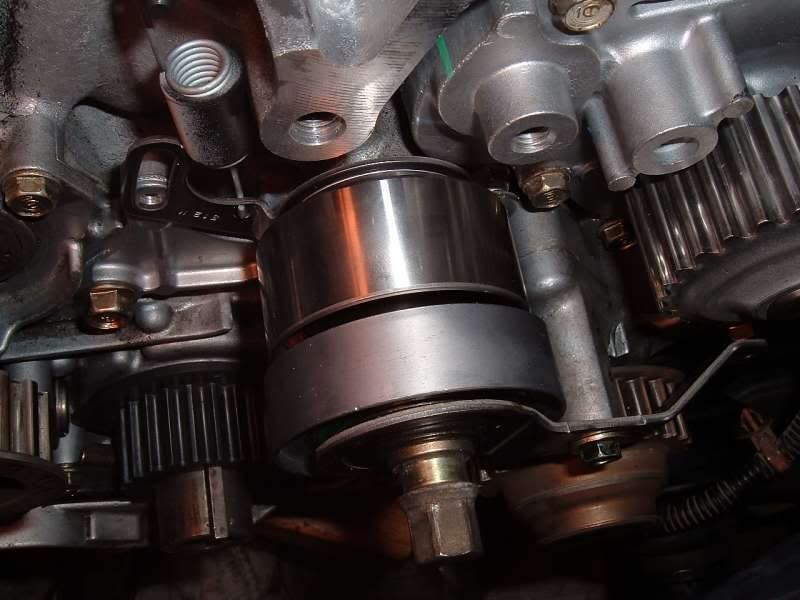

19. Install manual tensioner parts (see manual tensioner writeups):

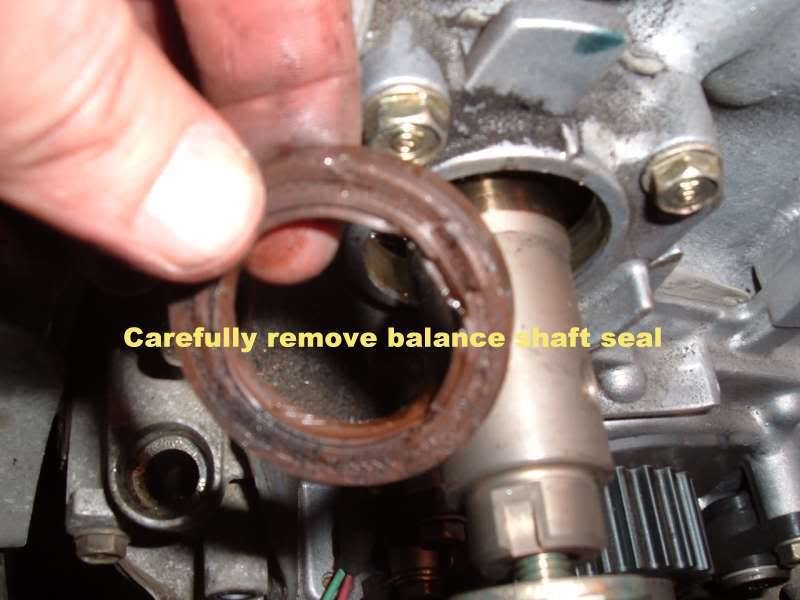

20. If replacing the balance shaft seal:





Be sure to install the balance shaft seal retainer!

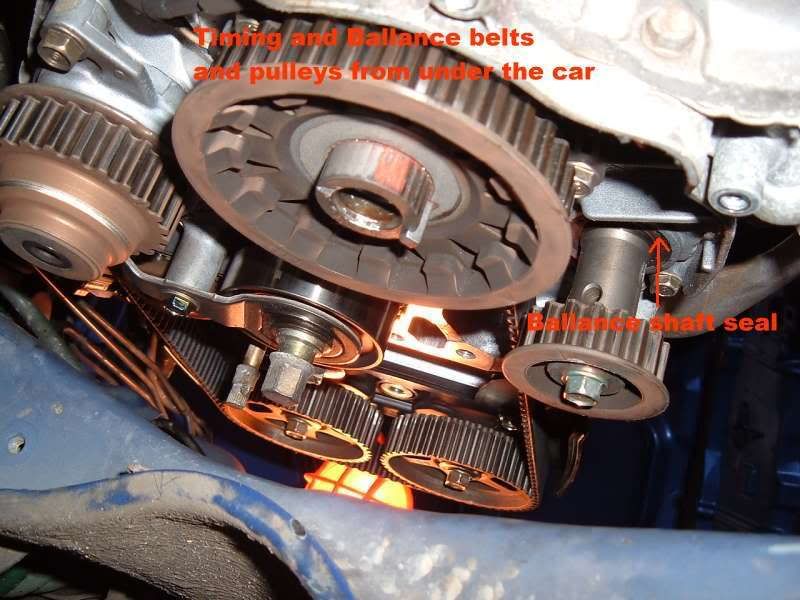

21. Installing new Timing Belt:

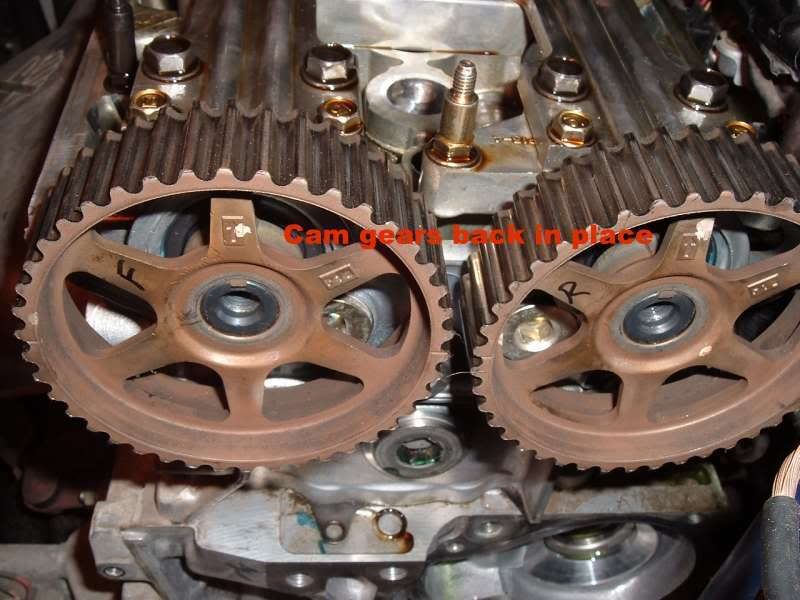

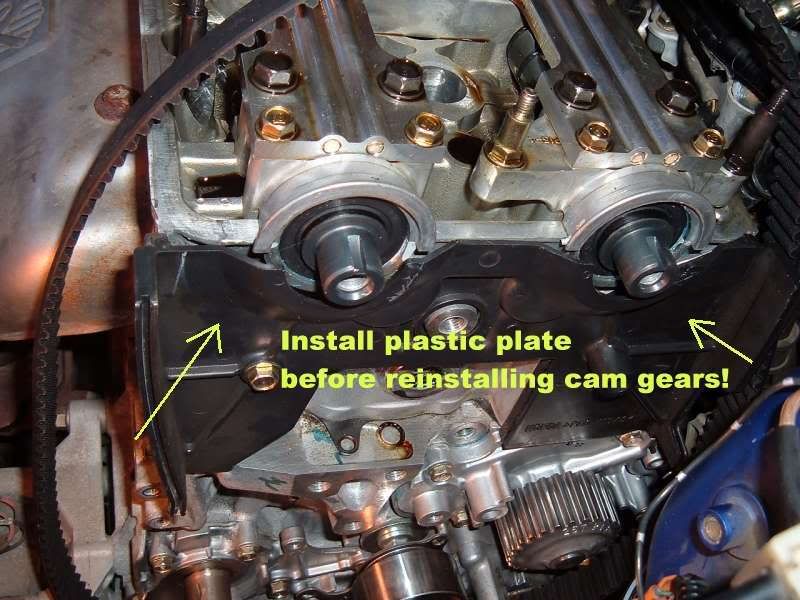

Reinstall the plastic plate under the cam gears, then reinstall the cam gears



(yes I realize that in this pic the plastic plate isn't under the cam gears)

Then hold and tighten each cam gear to the torque specified in the Helms manual

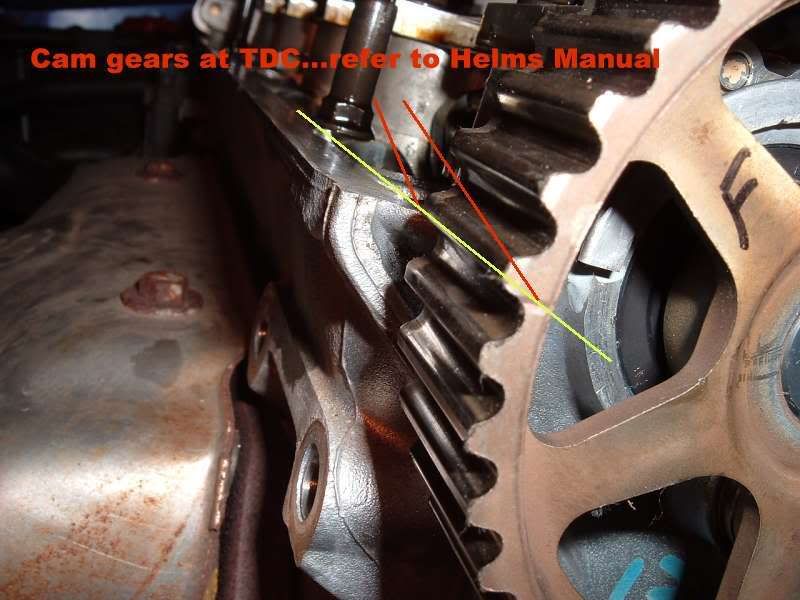

Place each cam gear at TDC according to the Helms Manual:


Put the crank timing belt drive pulley at TDC according to the Helms manual. There are little marks on it that must line up with the pointer.


Install the timing belt over the crank drive gear, be sure not to turn the crank shaft once set at TDC!

This is the tricky part: While keeping the cam gears at TDC, wrap the timing belt around the front gear and then the rear, use a zip tie to help you hold it in the correct position on the first cam gear while you work the belt over the water pump and tensioner pulley!

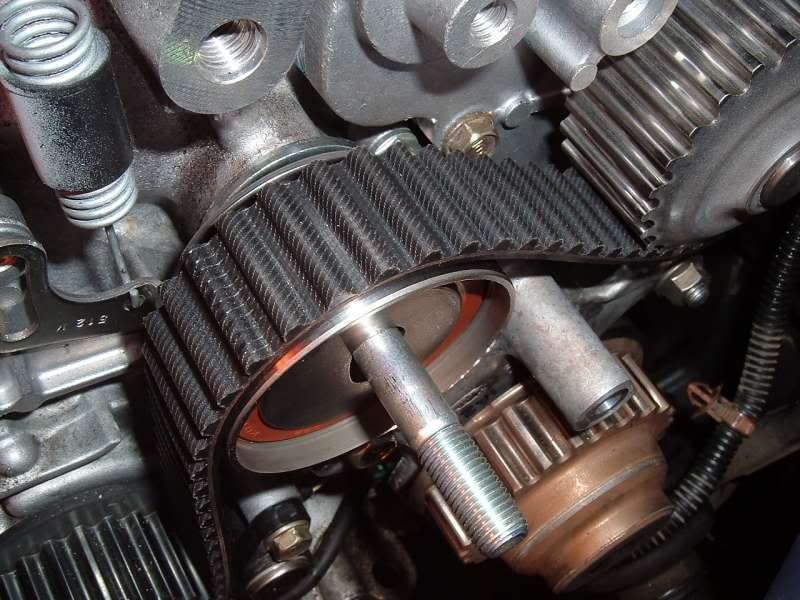

I had to pull the tensioner pulley off of it's pivot point in order to get the timing belt over the pulley...yes it's going to be tight!


Once you are on, turn the engine counterclockwise using the crank pulley placed over the crank shaft and gloves to turn it. This is MUCH easier if you remove the spark plugs first:

Once you've turned the engine several revolutions recheck that the cam gears are both at TDC when the crank gear is at TDC...if they match up, you are good to go!

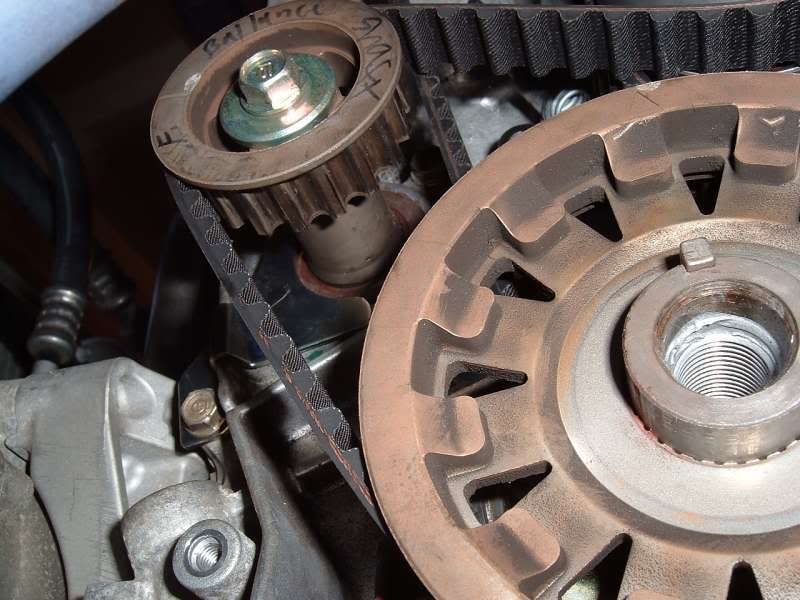

22. Install the balance belt. Follow the proceedure in Helms to align the rear pulley. You will need a 100mm x 6mm bolt to insert in the maintenance hole at the back of the block to hold the rear balance shaft in the correct position while you install the new balance belt



****There is a groove in the shaft of the front balance shaft that must line up with the pointer while you install the balance shaft belt. If it's off by one tooth you'll know it, the groove won't even be close to lining up with the pointer.





23. Set the correct tension on the timing belt and balance shaft belts!
I went by feel since I've done timing belts before. I found that the timing belt was just right with the tensioner as loose as it goes! The balance belt needed to be about half way between the tensioners travel from loose to tight to have the right deflection for me.

If anyone has the correct belt deflection numbers please share them!

Once you set the tension you must tighten the tensioner adjusting nut (14mm) to the correct torque and then tighten the small bolt that goes to the pivot arm. Turn the engine several revolutions counterclockwise by hand to be sure there is free movement.

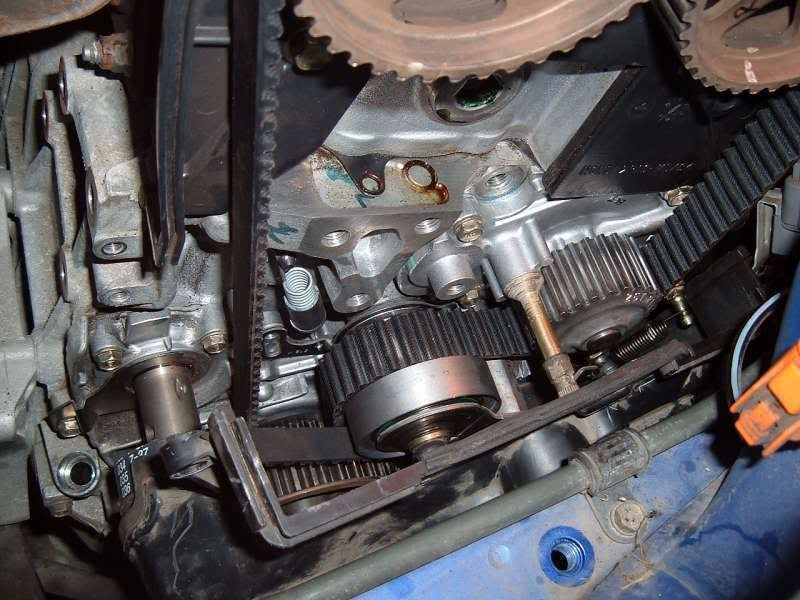

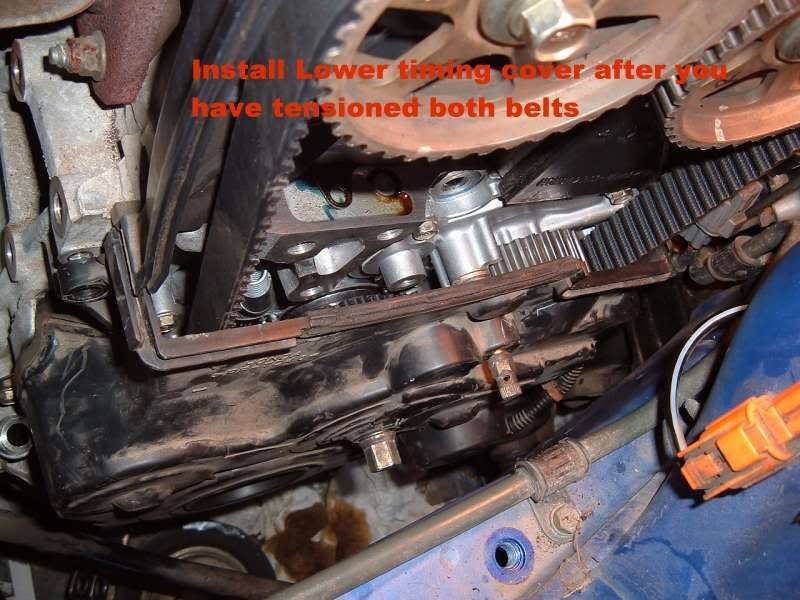

24. Reinstall the lower timing cover:

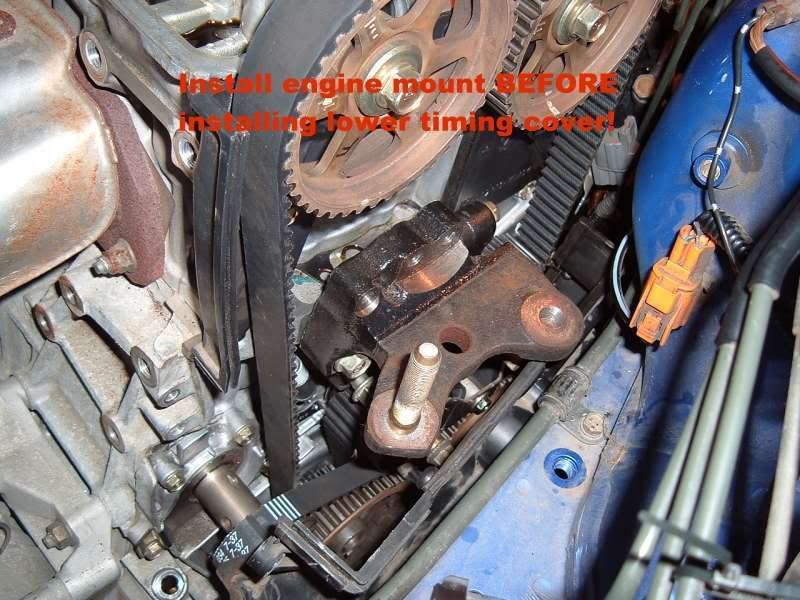

********First install the side engine mount!







Note: one of these pics shows the lower cover with the engine mount off so you can see more detail.

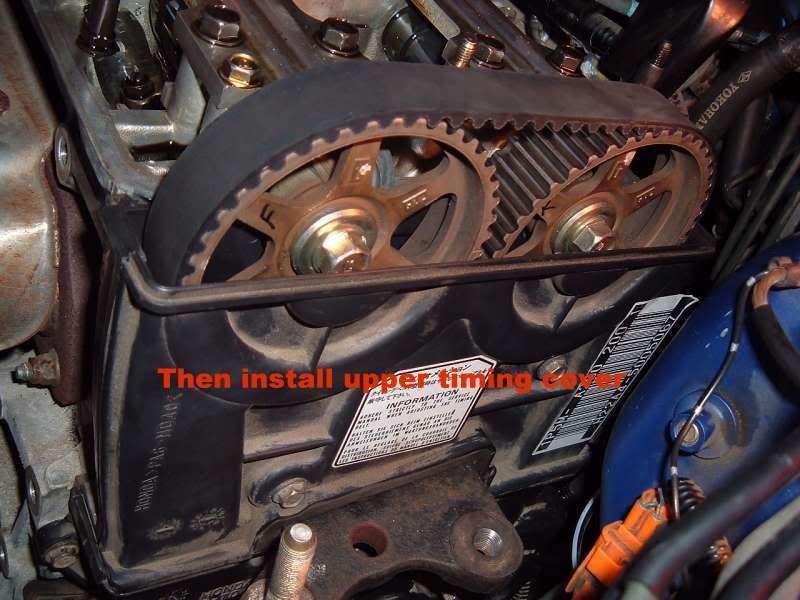

25. Reinstall the upper timing cover and the 2 rubber seals that go over the 2 adjuster bolts that go through the lower timing cover:



26. Reinstall the rest of the side engine mount

27. Reinstall the valve cover. Be sure to use a new gasket set for the valve cover or at least apply some RTV to the seals, especially the corners of the seals near the cam ends.

28. Reinstall the PS and alternator brackets, heat shield, alternator, PS pump and both drive belts.

29. Refill the motor oil.

30. Refill the coolant.

31. Reconnect anything else that may be disconnected (ie: PS pump line, alternator wire loom, PCV valve, spark plugs and wires, etc etc. Use your best judgement to be sure everything is in order before starting the car!

32. Reconnect the battery Negative terminal.

33. Leave the radiator cap off

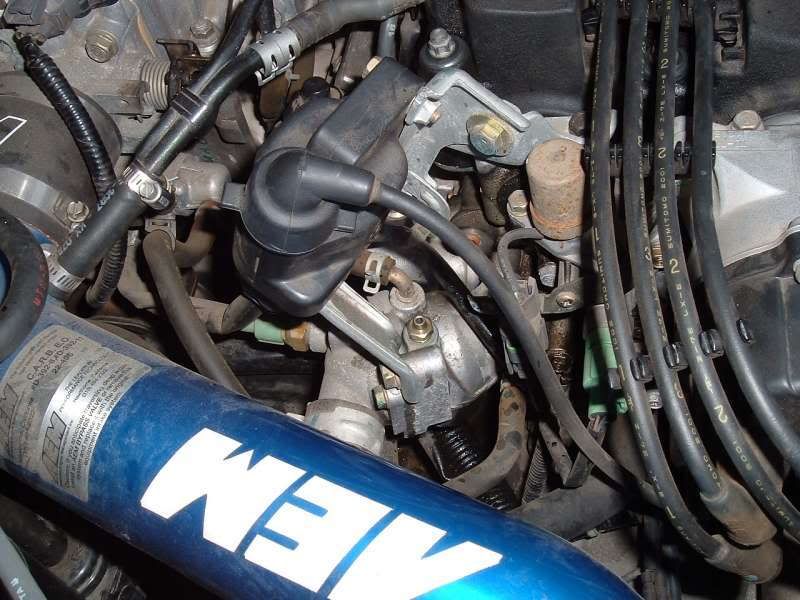

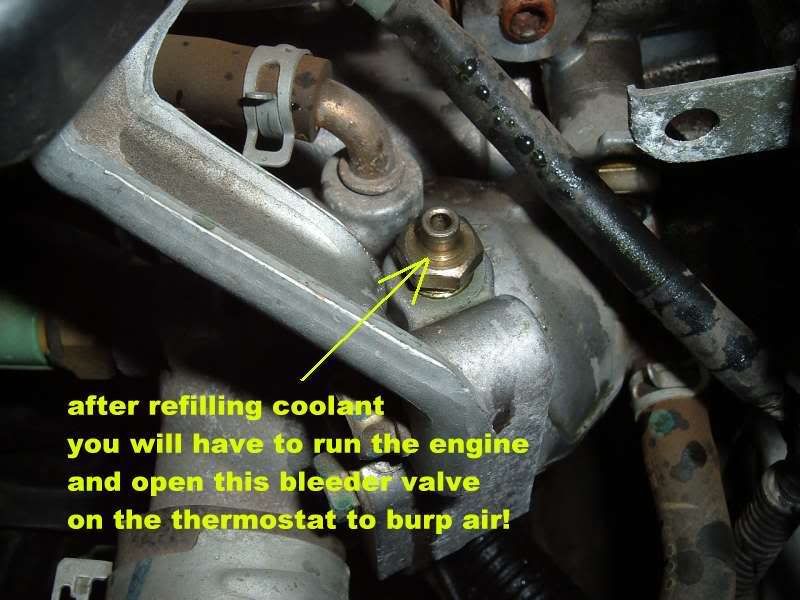

34. Open the coolant bleeder valve on the top of the thermostat:





35. Start the car and make sure it feels and sounds right! If all is good, let it reach operating temperature and eventually coolant and air will start flowing from the coolant bleeder valve...once there is no more air, close the bleeder valve. Close the radiator cap. turn the car off and let it cool down. Once cool, remove radiator cap and top off coolant level.

36. Check oil level and check for fluid leaks.

37. Torque your crank pulley bolt to 180 ft lbs! No, that's not a typo! It's best to use an impact torque wrench so as not to turn the engine backwards!

38. Test drive! :turn:

39. You did it! Now go have a brew and take a long nap! That was HARD WORK! You now know why they charge so much for the Full Timing belt job!
See less See more
  • Like
Reactions: 5
lol......damn, I will definately know why "they" charge so much for T-Belt job!!!!(Tax return FTW!!) I can't do that myself, or with my Dad and brother and several friends!

I def need to get my T-Belt, fuel filter and such done before the Skyline Meet!

once again Jesse.....that is a hell of a write-up!! nice job.

:Rock:
good stuff
Damn... Yeah that would def take a whole weekend for ur first time. Nice write-up. I almost tempted to do it myself and save me $300 in labor..
GREAT writeup! is it just me or does your exhaust cam look really worn on cylinder 2? maybe it's just oil, i dunno
GREAT writeup! is it just me or does your exhaust cam look really worn on cylinder 2? maybe it's just oil, i dunno
It does look that way...but it feels smooth to my finger so I dunno what that is about. Maybe it's just the temper on the metal is different there?

EDIT: actually now that I look at it, that's just because the point of the lobes on cylinder 2 happened to be facing the camera in that shot of the valve train.
Lookin good bro......thanks for the REP. You got trigger happy with that camera huh? LOL
Lookin good bro......thanks for the REP. You got trigger happy with that camera huh? LOL
LOL, yea that's only about 2/3 of the pictures I took, too! :turn:

I figured if you're going to do a writeup, more pictures is always better!
  • Like
Reactions: 1
LOL, yea that's only about 2/3 of the pictures I took, too! :turn:

I figured if you're going to do a writeup, more pictures is always better!
Oh so true. Its much easier to see it rather than read it!
wow...amazing write-up. Write-ups usually make me wanna attempt things but doing a timing belt job is totally out of my league. lol props to you! So...how much would you charge for you to do this? lol with Manual tensioner. How many cases of beer would it take? lol

oh yeah, I tried to rep you but it told me to spread the love to someone else before giving it to you again. lol
Awesome writeup. Too bad I already paid like a grand to have Honda to do this :p

I was too chicken to try that crank bolt.
Awesome stuff. Thanks for the great write up! Rep Given for sure. :Rock:
i was considering trying this over the summer.. definitely not
i also need to see the pic of this great Man JLude
awesome job
So it's safe to break loose the crank pulley bolt at a shop then drive the car?
wow...amazing write-up. Write-ups usually make me wanna attempt things but doing a timing belt job is totally out of my league. lol props to you! So...how much would you charge for you to do this? lol with Manual tensioner. How many cases of beer would it take? lol
At least 15, 12-bottle cases of corona, killians and Heinies! :turn: It's a LOT of work. I really don't feel like going through that again anytime soon!

i was considering trying this over the summer.. definitely not
lol.

i also need to see the pic of this great Man JLude
awesome job
You mean this mug?



:lol:

So it's safe to break loose the crank pulley bolt at a shop then drive the car?
Have it broken loose, then have them apply a small amount of antiseize lube and retorque it to 80 or 100 ft lbs. It won't go anywhere on one drive. Then back at home it was easy to break loose again with the breaker bar. Thanks to Jason (EagleEyez) for breaking my SOB of a crank bolt loose! :smilejap:
See less See more
thats an excellent writeup.. mad props to u, you could have done this job alot quicker yet u wanted to help everyone else out and take pictures =]
Awesome write up! I did this same procedure about a month ago and this really would have helped.
